Plant Louvres

Plant louvres are specifically designed to provide ventilation to the mechanical and electrical (M&E) equipment housed in industrial plants. These louvres are instrumental in ensuring that the M&E equipment operates efficiently while maintaining a safe and healthy environment for building occupants. Plant louvres are typically installed on external walls to allow fresh air to enter and exit the room, providing the necessary air supply for efficient operation of the M&E equipment. They are designed to withstand the harsh outdoor conditions and protect the equipment from debris, birds, and other potential hazards that could damage or clog critical systems.

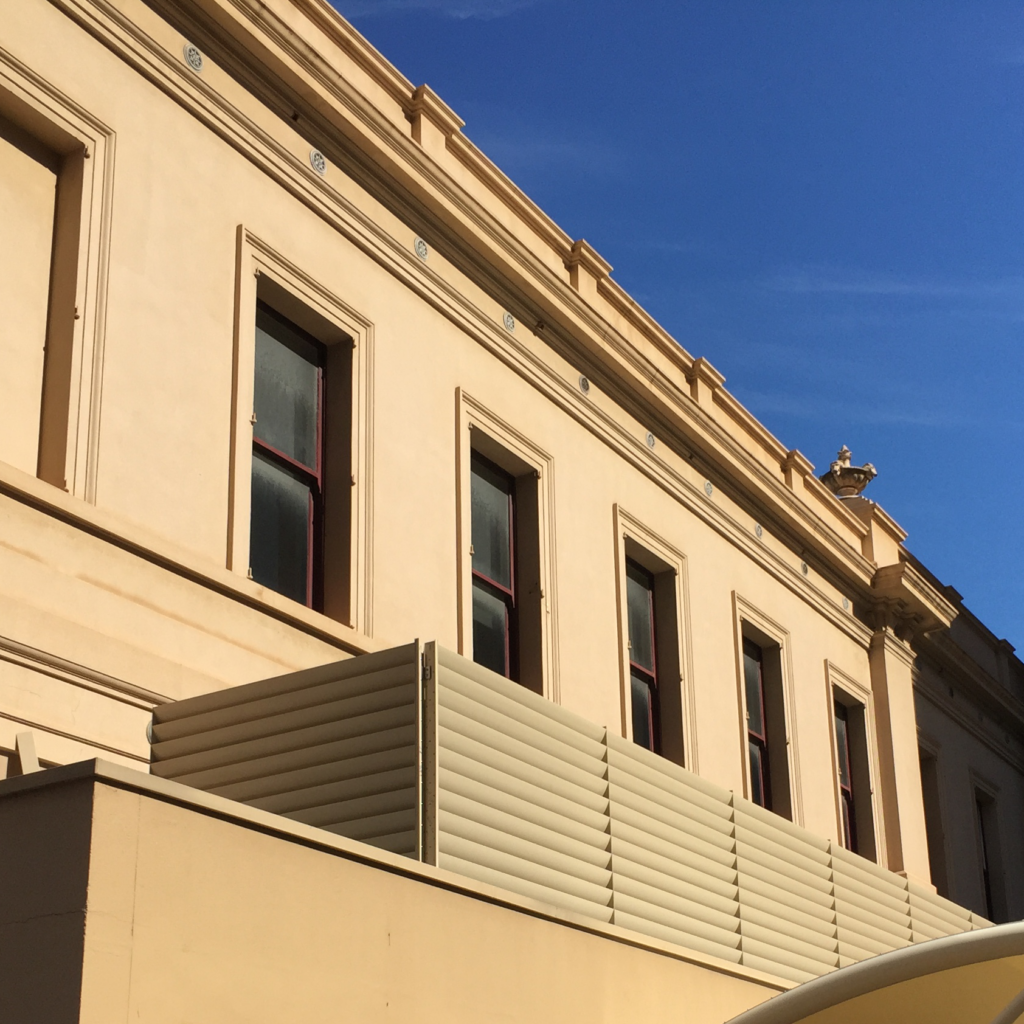

Roof Platform Louvres

We specialize in providing high-quality roof platform plant louvres that are designed to meet your specific requirements. Our louvres are perfect for use in industrial, commercial, and residential settings, and are made from durable materials that can withstand even the toughest weather conditions.

Our roof platform louvres are specifically designed to provide effective ventilation and protection for your plant equipment, while also ensuring that your building remains aesthetically pleasing. Our team of experts is committed to providing you with the best possible solutions for your unique needs, and we work closely with you to ensure that your louvres are designed to your specifications.

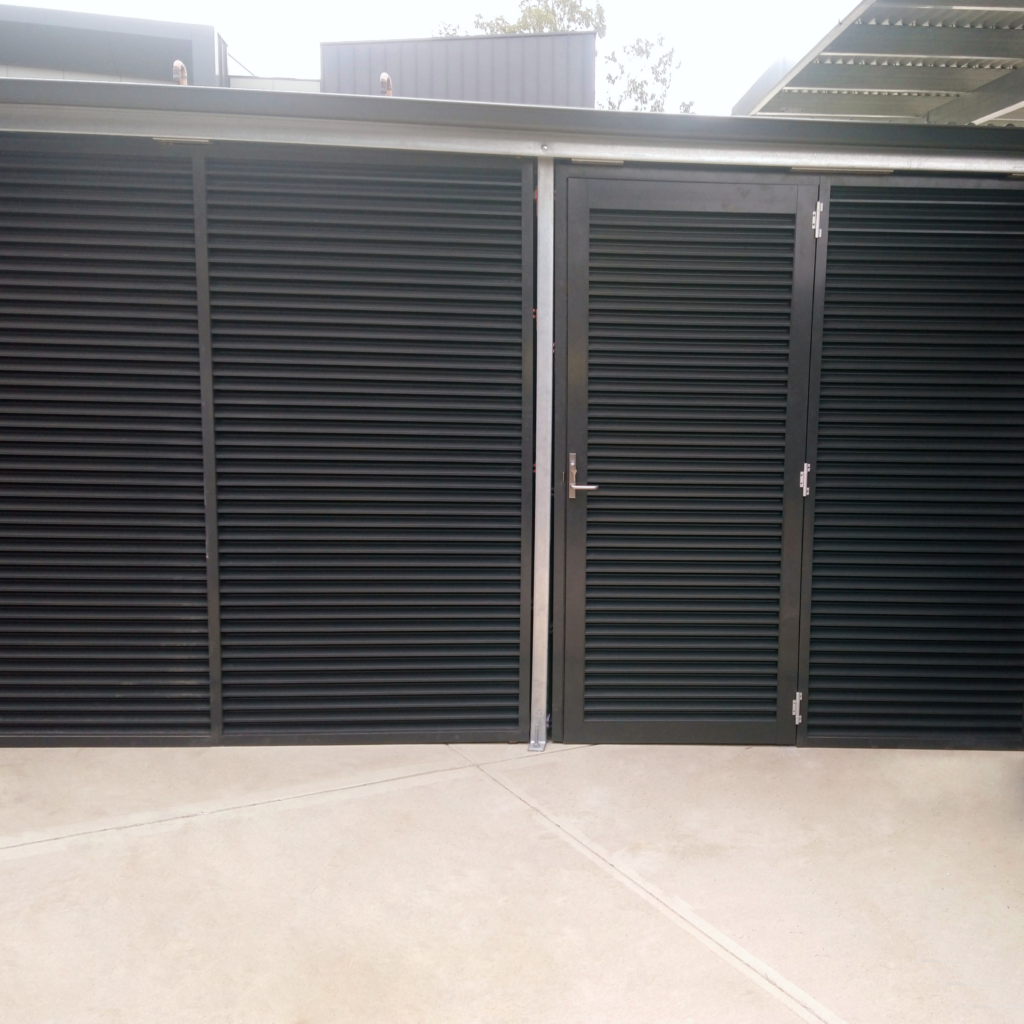

Plant Room

One of the most important features of plant room louvres is their ability to provide effective noise attenuation. The systems housed in plant rooms can be incredibly noisy, and without adequate noise control measures, the resulting noise pollution can be a severe problem for the surrounding area. Plant room louvres are designed to provide excellent sound attenuation, ensuring that the noise generated by the equipment is minimized and contained within the plant room.

Plant room louvre weatherproofing is a critical element in ensuring the longevity and effectiveness of your louvres. Weatherproofing  protects your equipment and prevents damage from harsh weather conditions.

Plant room louvres are available in various designs, finishes, and sizes to suit the specific requirements of different applications. They are often customized to complement the architecture of the building and to meet the unique needs of the specific plant room.

OUR RANGE

45100

Loading file
  • Fullscreen
  • Wireframe
  • Zoom In
  • Zoom Out
  • Rotation
  • Screenshot
  • Help

Controls

×
  • Rotate with the left mouse button.
  • Zoom with the scroll button.
  • Adjust camera position with the right mouse button.
  • Double-click to enter the fullscreen mode.
  • On mobile devices swipe to rotate.
  • On mobile devices pinch two fingers together or apart to adjust zoom.
  • On mobile devices 3 finger horizontal swipe performs panning.

The 45100 is a single-stage horizontal 45° louvre designed for reliable ventilation and visual screening where weatherproofing isn’t critical. It’s commonly used on plant rooms, intakes/reliefs and rooftop screens. Nominal free open area: ≥ 55% (varies with size, mullions and any mesh).

Configurations

  • Framed modules
    45100 BF — Box Frame module
    45100 AF — Angle Frame module
    Mullions supplied as required for opening size and design pressure.

  • Carrier-rail option (new)
    Blades on carrier rail with top capping & corner flashing — ideal for long, continuous rooftop runs and parapet/riser screens where a clean, frameless look and simple flashing is preferred.

Key features

  • Horizontal 45 degree blades at 100 mm pitch
  • High free area at least 55 percent for low resistance to airflow
  • Pressure drop data for flow inside to outside and outside to inside
  • Carrier rail with capping and corner flashing option for rooftop screens
  • Modular framed system AF or BF with mullions as required
  • Optional birdscreen to rear

Materials

  • Blades & frames/carriers: extruded aluminium 6063-T5

  • Birdscreen (optional): galvanised steel (stainless steel or aluminium mesh available)

  • Fasteners: stainless steel; fixings to suit substrate

Finishes

  • Mill (as-extruded), anodised, or powder-coated to specification (full architectural colour range)

  • Enhanced/coastal coating systems available on request

Installation

  • Framed modules AF or BF supplied as factory built panels for fixing to prepared openings or sub frames. Sealant by others. Set plumb and level. Join modules as required. Fit birdscreen where specified.
  • Carrier rail system uses continuous blade carriers fixed to supports with top capping and corner flashing for neat returns around parapets and plant decks.
  • Clearance allow 1.5 times the louvre height between the louvre and any equipment.
  • Weather note single stage louvres are not weatherproof by design.

Performance

  • Free open area: ≥ 55% (nominal; varies with size/mullions/mesh)

  • Pressure drop: refer to 45100 Pressure Drop Measurements (curves for flow inside→outside and outside→inside)

  • Structural: refer to the 45100 Safe Load Table (SPAN vs PRESSURE) for mullion sizing/spacing guidance

Compliance

  • Wind/structural actions: AS 1170

  • Aluminium design/stresses: AS 1664

  • Fabrication from 6063-T5 extrusions to industry tolerances; project-specific engineering available on request

Typical applications

  • Rooftop plant screens and parapet enclosures (carrier-rail with capping & corner flashing)

  • AHU/plant-room intakes and discharges

  • Mechanical and service risers, acoustic/visual screening (with project-specific backing as required)
